FLEXIBLE INSULATED COPPER BARS

GET A QUOTE

The best solution when connections with plain bars aren't possible …

Barre cuivre souple isolée pliée RoHS

 ■ DESCRIPTION

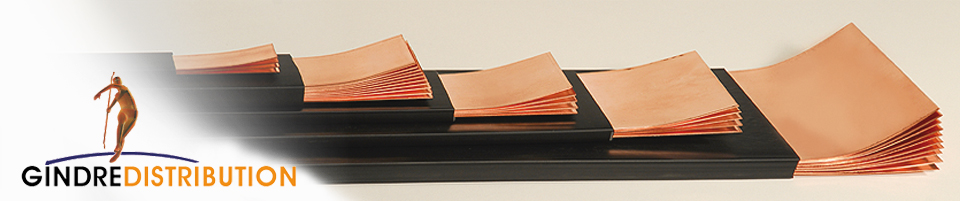

Several copper strips inside PVC

■ TECHNICAL SPECIFICATIONS
Copper
Copper Cu-ETP with a minimum
copper content of 99.90%

• Annealed
• Upon NFA 51 050, DIN 40500
• Conductivity : 100 IACS
• HV < 50
• Tensile strength: Rm > 200 N/cm2
• Elongation after break > 35 %
• Resistivity : 1,724 micro Ω /cm à 20 °C
Electrical specifications
• Dielectric rigidity: 20 kV / mm
• Tension of use: 1000V AC / 1500 V DC
• Temperature of use: -40° à +105°C


Insulating material
• Self extinguishing black PVC
• Thickness : 1,5 - 2 mm
• Specifications upon BS 6746,
VDE 207 : Y16 et YM4 ;  UL 94 VO
• Hardness Shore  A : 89 +/- 2
• Elongation: 15% mini
• Breaking restivity: 20 MPa



■ PRESENTATION / PACKAGING
• Length : 2000 mm (-0/+5 mm)
• Marking : MAXIFLEX brand and sizes ( width x thickness x number of strips )
Wooden packaging to the unit or 10

OUR DAILY SUMMARY ALLOYS QUOTATIONS

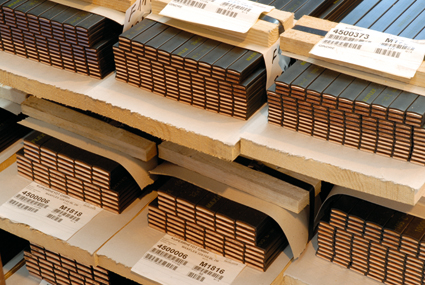

INSULATED FLEXIBLE COPPER BARS: OUR STANDARD SIZES IN STOCK
Use the cursor on the right to scrole through the references
STRIPS ITEM
CODE

CURRENT CAPACITY with an  ambient température of 20°C
according to conductor température rising
Width Thickness Quantity 20°C 30°C 40°C 50°C 60°C 70°C

80°C

















Generated by Import CSV plugins From http://www.erreurs404.net

9

 x 0,8 x 2 9502092 59 74 86 96 105 113 120
9 x 0,8 x 3 9503092 83 104 121 136 149 160 170
9 x 0,8 x 4 9504092 106 133 155 173 189 204 216
9 x 0,8 x 5 9505092 142 177 206 231 253 272 289
9 x 0,8 x 6 9506092 177 221 258 289 316 340 361

15,5 x 0,8 x 2 9502152 102 128 149 167 183 197 209
15,5 x 0,8 x 3 9503152 143 179 208 233 255 274 291
15,5 x 0,8 x 4 9504152 197 247 288 322 353 379 403
15,5 x 0,8 x 5 9505152 228 285 332 372 407 437 465
15,5 x 0,8 x 6 9506152 255 319 371 416 455 489 519
15,5 x 0,8 x 10 9510152 281 351 409 458 501 539 572

20 x 1 x 2 9502200 172 215 250 280 306 329 350
20 x 1 x 3 9503200 222 278 324 363 397 427 453
20 x 1 x 4 9504200 249 311 363 406 444 478 507
20 x 1 x 5 9505200 259 324 378 423 463 497 528
20 x 1 x 6 9506200 285 356 415 465 509 547 581
20 x 1 x 8 9508200 335 419 488 546 597 642 682
20 x 1 x 10 9510200 397 497 579 649 709 763 810

24 x 1 x 2 9502240 235 294 342 384 419 451 479
24 x 1 x 3 9503240 256 320 373 418 457 491 522
24 x 1 x 4 9504240 288 360 420 470 514 553 587
24 x 1 x 5 9505240 318 398 463 519 568 610 648
24 x 1 x 6 9506240 351 439 511 573 626 674 716
24 x 1 x 8 9508240 417 522 607 681 744 800 850
24 x 1 x 10 9510240 456 570 664 744 814 875 930

32 x 1 x 2 9502320 252 315 367 411 450 483 514
32 x 1 x 3 9503320 296 371 432 484 529 569 604
32 x 1 x 4 9504320 340 425 495 554 606 652 693
32 x 1 x 5 9505320 397 496 578 648 708 762 809
32 x 1 x 6 9506320 443 554 645 723 790 850 903
32 x 1 x 8 9508320 533 667 777 870 951 1023 1087
32 x 1 x 10 9510320 642 804 936 1049 1147 1233 1310

40 x 1 x 2 9502400 279 349 406 455 498 535 569
40 x 1 x 3 9503400 322 403 469 525 575 618 656
40 x 1 x 4 9504400 379 474 552 618 676 727 772
40 x 1 x 5 9505400 471 589 686 768 840 903 959
40 x 1 x 6 9506400 530 663 773 866 947 1018 1081
40 x 1 x 8 9508400 642 803 936 1048 1146 1233 1309
40 x 1 x 10 9510400 728 911 1061 1189 1300 1397 1484

50 x 1 x 2 9502500 299 374 436 488 534 574 610
50 x 1 x 3 9503500 365 457 532 597 652 701 745
50 x 1 x 4 9504500 449 561 654 732 801 861 914
50 x 1 x 5 9505500 572 716 834 934 1021 1098 1167
50 x 1 x 6 9506500 639 799 931 1043 1140 1226 1302
50 x 1 x 8 9508500 725 907 1057 1184 1295 1392 1479
50 x 1 x 10 9510500 860 1076 1253 1404 1535 1651 1754

63 x 1 x 2 9502630 324 405 472 529 579 622 661
63 x 1 x 3 9503630 418 523 609 683 746 802 852
63 x 1 x 4 9504630 528 660 769 861 942 1013 1076
63 x 1 x 5 9505630 637 797 928 1040 1137 1223 1299
63 x 1 x 6 9506630 751 940 1095 1226 1341 1442 1532
63 x 1 x 8 9508630 863 1079 1257 1409 1540 1656 1760
63 x 1 x 10 9510630 990 1239 1443 1617 1768 1901 2019

80 x 1 x 2 9502800 381 477 555 622 680 732 777
80 x 1 x 3 9503800 509 637 742 831 909 977 1038
80 x 1 x 4 9504800 626 783 912 1022 1118 1202 1277
80 x 1 x 5 9505800 727 909 1059 1187 1298 1395 1482
80 x 1 x 6 9506800 849 1063 1238 1387 1516 1630 1732
80 x 1 x 8 9508800 991 1240 1444 1618 1769 1902 2021
80 x 1 x 10 9510800 1097 1372 1599 1791 1958 2106 2237

100 x 1 x 2 9502100 441 552 643 720 788 847 900
100 x 1 x 3 9503100 585 732 853 955 1044 1123 1193
100 x 1 x 4 9504100 755 945 1100 1233 1348 1449 1540
100 x 1 x 5 9505100 853 1067 1243 1393 1523 1638 1739
100 x 1 x 6 9506100 961 1202 1400 1569 1715 1845 1959
100 x 1 x 8 9508100 1121 1402 1634 1830 2001 2152 2286
100 x 1 x 10 9510100 1226 1533 1786 2001 2188 2353 2499

Other non standard dimensions can be proposed on request. Call + 33 4 72 46 09 09.
